Macaca 极简教程


Macaca 介绍

教程

源码空间：https://github.com/macacajs

模块拆分讲解：

Macaca

1. macaca-cli

Macaca提供的命令行工具

$macaca server 启动server

$macaca server --verbose 启动server并打印详细日志

$macaca doctor 检验当前macaca环境配置

2. app-inspector

macaca提供的元素查找工具，可以将app视图的结构以布局结构树的格式在浏览器上展示出来，用过点击某个元素，就可以方便的查询到该控件的基本信息，以方便查找。具体使用可参考官网: https://macacajs.com/inspector

3. UI Recorder

macaca提供的脚本录制工具，可以通过录制获得脚本，对于入门同学很有帮助。https://macacajs.com/recorder

WebDriver-Server

Macaca是按照经典的Server-Client设计模式进行设计的，也就是我们常说的C/S架构。WebDriver-server部分便充当了server这部分的角色，他的职责就是等待client发送请求并做出响应。

WebDriver-Client

client端简单来讲就是我们的测试代码，我们测试代码中的一些行为，比如控件查找、点击等，这些行为以http请求的方式发送给server,server接收请求，并执行相应操作，并在response中返回执行状态、返回值等信息。

也正是基于这种经典的C/S架构，所以client端具有跨语言的特点，macaca-wd，wd.java,wd.py分别是Macaca团队针对Js Java 以及Python的封装,只要能保证client端按照指定的要求发送Http请求，任意语言都可以。

DriverList

自动化要在不同的平台上跑，需要有对应平台的驱动，这部分驱动接收到来自server的操作命令，驱动各自平台的底层完成对应的操作。

1. Android

Macaca针对安卓平台的驱动集合

  • macaca-android 安卓驱动
  • macaca-adb 封装了安卓的adb命令，来实现一些adb的操作，比如安装、卸载、启动app、获取设备列表这些操作
  • android-unicode 经过封装后的输入法，解决中文输入的问题
  • uiautomator-client 将来自server的操作指令转换为UIAutomator可以识别的指令，驱动uiautomator完成对应的操作
  • android-performance 用于自动化测试安卓性能相关的支持
2. iOS

Macaca针对iOS平台的驱动集合

  • macaca-ios iOS驱动
  • xctest-client 同安卓的uiautomator-client异曲同工，对XCUITest的封装，将来自server的操作指令转换为XCUITest可以识别的指令，驱动XCUITest完成对应的操作
  • ios-simulator 用于对ios模拟器的支持，可以通过模拟器运行用例
  • remote-debug 用于远程调试
3. Hybrid

Macaca针对Hybrid的驱动集合。

  • macaca-chrome web测试驱动
  • macaca-chromedriver 驱动chrome浏览器
  • ios-webkit-debug-proxy 适用于iOS平台对webview的调试
4. Electron

Macaca针对pc端网页应用的支持

  • macaca-electron

快速开始：从无到有搭建 Macaca 环境 (forMac)

https://macacajs.com/zh/quick-start

基础环境准备

安装Homebrew

参考官网

简易安装步骤(最新可参考官网)

$ /usr/bin/ruby -e "$(curl -fsSL https://raw.githubusercontent.com/Homebrew/install/master/install)"

安装Node和npm

$ brew install node

安装后可以用node -v查看版本号,如果正常则说明安装成功,Macaca2.0要求当前node版本要高于6.0，如果以前安装过低版本的Node,可以通过如下命令更新Node版本：

$brew upgrade node

安装cnpm

https://cnpmjs.org/

npm是node.js的包管理工具，可以用他来安装和更新各种node的pacakage,可以理解为Java中Maven类似的作用，但是由于众所周知的那堵墙，直接用npm安装速度会非常慢，这种情况下可以安装阿里巴巴提供的cnpm，cnpm提供了国内的镜像，可以加快包的下载速度，安装方法如下：
命令行工具输入如下命令：

$npm install -g cnpm --registry=https://registry.npm.taobao.org

如果在安装过程中提示 Permission 权限相关错误，可以尝试 sudo chown -RUSER /usr/local，永久破除 sudo 要求。

安装成功后同样可以通过cnpm -v来验证安装是否成功，安装成功后，在原来使用npm的地方，直接替换成cnpm即可，
比如，原始命令为

$npm i -g macaca-cli

替换后为:

$cnpm i -g macaca-cli

Macaca相关安装

iOS

如果不针对iOS作自动化，可以忽略此处

  1. 安装XCode(依赖Mac电脑，AppStore下载即可)
  2. 安装相关工具
$ brew install usbmuxd$ brew install ios-webkit-debug-proxy
$ brew install carthage

Android

  1. 安装JDK Macaca支持JDK7及以上，可到官网选择对应版本安装 官网下载 注意安装后需要配置JAVA_HOME环境变量,如果本地命令行工具用的是mac系统的默认命令行工具，将其配置到 ~/.bashprofile中，如果用的是zsh，将其配置到 ~/.zshrc中，如下：
export JAVA_HOME="/Library/Java/JavaVirtualMachines/jdk1.8.0_101.jdk/Contents/Home"

环境变量修改后需要source一下进行更新，比如如果修改的是~/.zshrc，需要执行$source ~/.zshrc

更新后执行echo $JAVA_HOME 如果能正常打印出环境变量，则证明环境变量已经配置成功.

  1. 安装Android Studio 官方安装

3.安装gradle（用于打包UIAutomatorWD）

$ brew install gradle

配置gradle环境变量，如果本地命令行工具用的是mac系统的默认命令行工具，将其配置到/.bashprofile中，如果用的是zsh，将其配置到/.zshrc中，如下：

export GRADLE_HOME="/usr/local/bin/gradle"

环境变量修改后需要source一下进行更新，比如如果修改的是~/.zshrc，需要执行$source ~/.zshrc

更新后执行echoGRADLE_HOME 如果能正常打印出环境变量，则证明环境变量已经配置成功

4.安装&配置安卓sdk

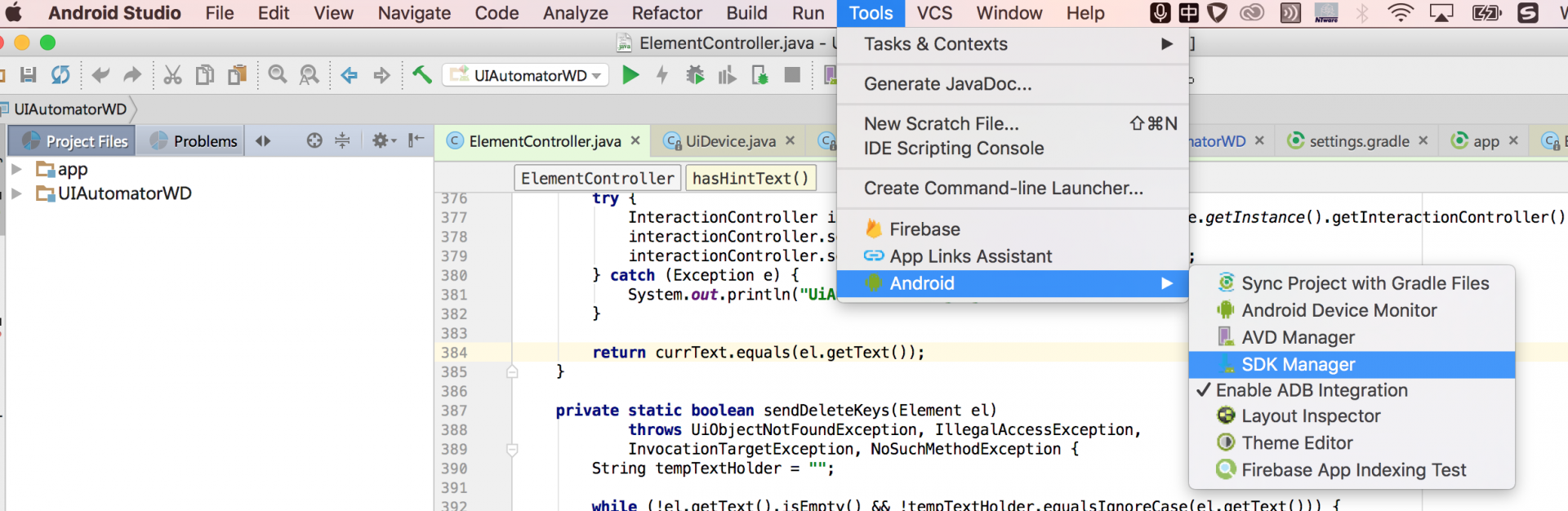

通过AndroidStudio内的sdkmanager安装安卓依赖的sdk版本，操作路径：
AndroidStudio -> Tools -> Android -> SDK Manager


需要安装的依赖：
SDK Platforms : Android 6.0及以上版本
SDK Tools: Android SDK Platform-Tools && Android SDK Tools && NDK

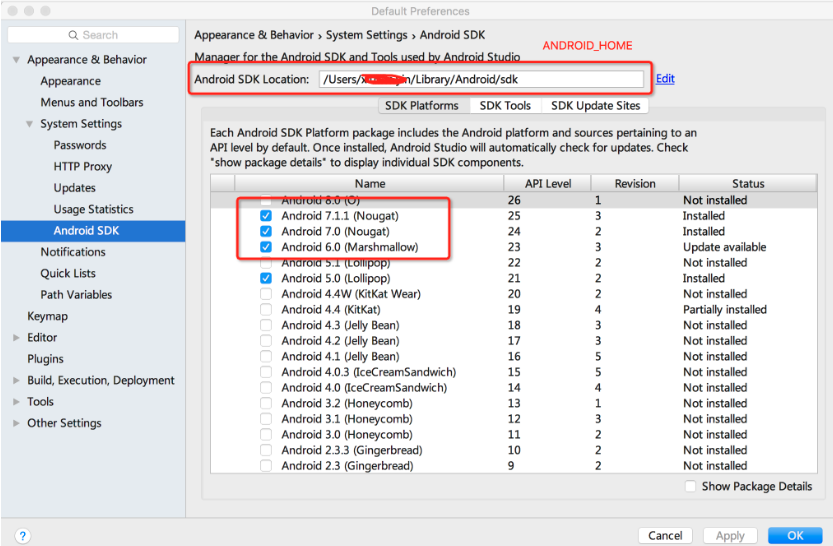

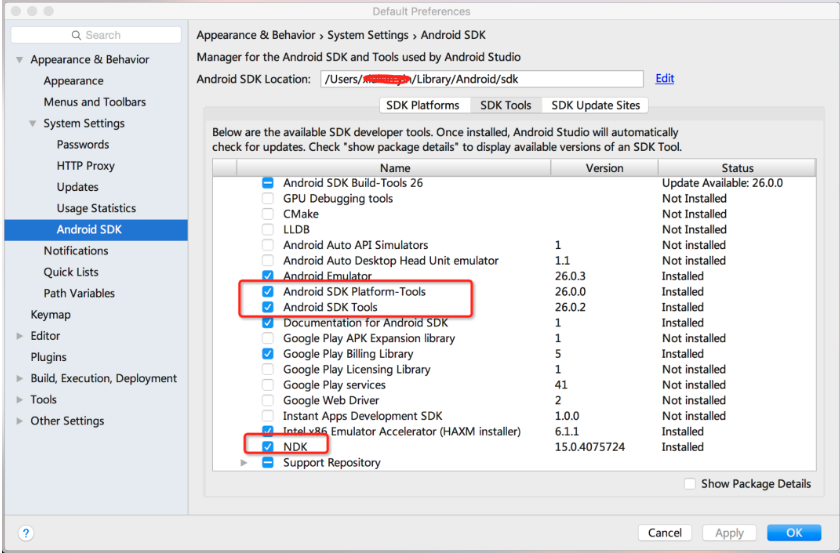

具体勾选效果如下：



上面第一张图中红框标记的ANDROID_HOME地址是安卓SDK的路径，需要配置到环境变量中，配置方法同gradle一样

如上都配置好后，需要将两个环境变量拼接到系统的PATH变量中，全部配置完成后的内容如下：


Macaca命令行工具安装

macaca-cli为macaca的命令行工具，集成了macaca doctor等命令

$ cnpm i -g macaca-cli

// 备注 -g 表示全局安装，如果不加-g参数会在当前目录下安装macaca-cli

驱动安装

执行如下命令安装对应不同平台的驱动，可以选择性安装

$ cnpm i macaca-ios -g       // iOS驱动(用于iOS平台自动化)$ cnpm i macaca-android -g  // Android驱动(用于安卓平台自动化)$ cnpm i macaca-chrome -g  // chrome 驱动$ cnpm i macaca-electron -g  // electron 驱动

备注：

  1. 当需要更新相应驱动时，直接执行如上的安装命令即可
  2. cnpm i macaca-ios -g 如果提示 xcode-select: error: tool 'xcodebuild' requires Xcode, but active developer directory '/Library/Developer/CommandLineTools' is a command line tools instance 命令行执行如下即可： sudo xcode-select -s /Applications/Xcode.app/Contents/Developer

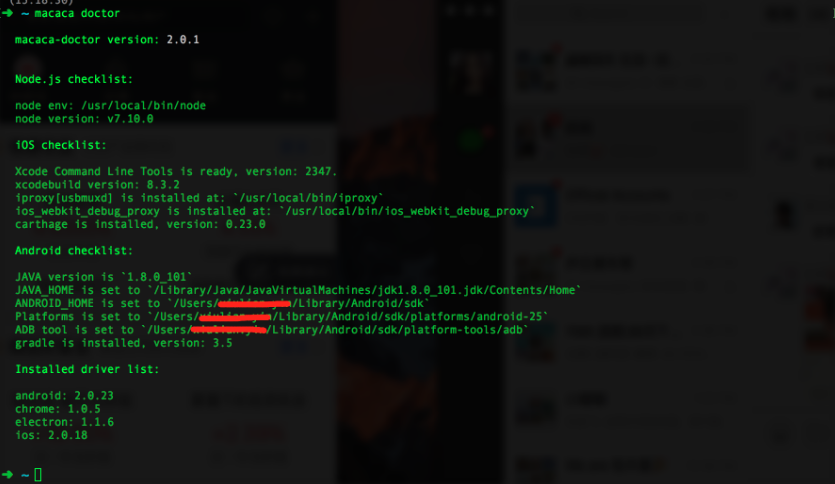

至此，便完成了完整的Macaca相关环境的安装，此时我们可以通过macaca doctor命令检查当前环境配置：


如图为常规的Macaca环境配置结果，现在Macaca在环境上做了相对严格的校验，如果有部分依赖安装不成功，会给出相应的提示，针对性解决即可。

https://macacajs.com/

代码实例

https://github.com/microu2018/macaca-java-biz-sample

macaca-chromedriver

https://github.com/macacajs/macaca-chromedriver

awesome-macaca

A curated list of awesome things regarding Macaca ecosystem.

Table of Contents

Resources

Tutorials

Examples

Clients

  • macaca-wd - Node.js WebDriver Client for Macaca
  • wd.java - Java client binding for Macaca
  • wd.py - Python client binding for Macaca

Tools

Inspector

Recorder

  • UI Recorder - UI Recorder is a UI test case recorder like Selenium IDE

DataHub

Marmot

  • Marmot - Release management suite with continuous delivery support for deployments

Coverage

NoSmoke

  • NoSmoke - A cross platform UI crawler which scans view trees then generate and execute UI test cases.

Monkey Testing

Computer Vision

Page UITest

  • Torchjs - Test framework to light up the world
  • uitest - UI Test framework for Node.js based on Macaca

Browser Testing

  • f2etest - F2etest是一个多浏览器兼容性测试整体解决方案

Reporter

  • macaca-reporter - Macaca reporter is a reporter used for mocha and other frameworks

Bot

  • macaca-bot - :octocat: bot to resolve the issues and PR of Macaca

Other Tools

Drivers

Video

Articles

English

Chinese

Presentations

Slides

Community

Contributing

Your contributions and suggestions are always welcome! :smiley:

Contributors

<img src="https://avatars1.githubusercontent.com/u/1011681?v=4" width="100px;"/>
<b>xudafeng</b>

This project follows the git-contributor spec, auto upated at Sat Apr 21 2018 17:02:08 GMT+0800.

License

[图片上传失败...(image-c99436-1537499061724)]

macaca-wd.js

'use strict';

/**
 * Query the server's current status.
 * @summary Support: Android iOS Web(WebView)
 * @returns {Promise.<Object>} The server's current status.
 */
function status() {}

/**
 * Create a new session.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#dfn-new-session|POST /session}
 * @param {Object} desired Desired Capabilities
 * @type session
 * @returns {Promise.<Object>}
 */
function init(desired) {}

/**
 * Returns a list of the currently active sessions.
 * @summary Support: Android iOS Web(WebView)
 * @returns {Promise.<Array>}
 */
function sessions() {}

/**
 * Delete the session.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#dfn-delete-session|DELETE /session/:sessionId}
 * @returns {Promise}
 * @type session
 */
function quit() {}

/**
 * Get the current context.
 * @summary Support: Android iOS
 * @returns {Promise.<string>}
 */
function currentContext() {}

/**
 * Set the current context.
 * @summary Support: Android iOS
 * @param {string} contextRef context reference from contexts
 * @returns {Promise}
 */
function context(contextRef) {}

/**
 * Get a list of the available contexts.
 * @summary Support: Android iOS
 * @returns {Promise.<Array>} A list of available contexts.
 */
function contexts() {}

/**
 * Set the amount of time the driver should wait.
 * @summary Support: Android iOS Web(WebView)
 * @param {number} ms The amount of time to wait, in milliseconds
 * @returns {Promise}
 */
function sleep(ms) {}

/**
 * Take a screenshot of the current page.
 * @summary Support: Android iOS Web(WebView)
 * @returns {Promise.<string>} The screenshot as a base64 encoded PNG.
 */
function takeScreenshot() {}

/**
 * Save the screenshot of the current page.
 * @summary Support: Android iOS Web(WebView)
 * @param {str} filepath The path to save the screenshot or left blank (will create a file in the system temp dir).
 * @returns {Promise.<string>} The filepath of the screenshot.
 */
function saveScreenshot(filepath) {}

/**
 * Get the current page source.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#dfn-get-page-source|GET  /session/:sessionId/source}
 * @returns {Promise.<string>}
 */
function source() {}

/**
 * Search for an element on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} using The locator strategy to use.
 * @param {string} value The search target.
 * @returns {Promise.<Element>}
 */
function element(using, value) {}

/**
 * Search for an element on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The class name
 * @returns {Promise.<Element>}
 */
function elementByClassName(value) {}

/**
 * Search for an element on the page, starting from the document root.
 * @summary Support: Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The css selector
 * @returns {Promise.<Element>}
 */
function elementByCss(value) {}

/**
 * Search for an element on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The ID attribute
 * @returns {Promise.<Element>}
 */
function elementById(value) {}

/**
 * Search for an element on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The name attribute
 * @returns {Promise.<Element>}
 */
function elementByName(value) {}

/**
 * Search for an element on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The text
 * @returns {Promise.<Element>}
 */
function elementByLinkText(value) {}

/**
 * Search for an element on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The partially text
 * @returns {Promise.<Element>}
 */
function elementByPartialLinkText(value) {}

/**
 * Search for an element on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The tag name
 * @returns {Promise.<Element>}
 */
function elementByTagName(value) {}

/**
 * Search for an element on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The XPath expression
 * @returns {Promise.<Element>}
 */
function elementByXPath(value) {}

/**
 * Search for multiple elements on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/elements}
 * @param {string} using The locator strategy to use.
 * @param {string} value The search target.
 * @returns {Promise.<Array>}
 */
function elements(using, value) {}

/**
 * Search for multiple elements on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/elements}
 * @param {string} value The class name
 * @returns {Promise.<Array>}
 */
function elementsByClassName(value) {}

/**
 * Search for multiple elements on the page, starting from the document root.
 * @summary Support: Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/elements}
 * @param {string} value The css selector
 * @returns {Promise.<Array>}
 */
function elementsByCss(value) {}

/**
 * Search for multiple elements on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/elements}
 * @param {string} value The ID attribute
 * @returns {Promise.<Array>}
 */
function elementsById(value) {}

/**
 * Search for multiple elements on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/elements}
 * @param {string} value The name attribute
 * @returns {Promise.<Array>}
 */
function elementsByName(value) {}

/**
 * Search for multiple elements on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/elements}
 * @param {string} value The text
 * @returns {Promise.<Array>}
 */
function elementsByLinkText(value) {}

/**
 * Search for multiple elements on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/elements}
 * @param {string} value The partially text
 * @returns {Promise.<Array>}
 */
function elementsByPartialLinkText(value) {}

/**
 * Search for multiple elements on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/elements}
 * @param {string} value The tag name
 * @returns {Promise.<Array>}
 */
function elementsByTagName(value) {}

/**
 * Search for multiple elements on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/elements}
 * @param {string} value The XPath expression
 * @returns {Promise.<Array>}
 */
function elementsByXPath(value) {}

/**
 * All the element-related methods above (except which suffixed with OrNull, IfExists) could be prefixed with the "waitFor-" (need to capitalize the 'e', e.g., waitForElementByClassName)
 * @summary Support: Android iOS Web(WebView)
 * @param {string} using The locator strategy to use, omitted when using specific method like waitForElementByClassName.
 * @param {string} value The css selector
 * @param {function} [asserter] The asserter function (commonly used asserter function can be found at wd.asserters) (optional)
 * @param {number} [timeout=1000ms] The timeout before find the element (optional)
 * @param {number} [interval=200ms] The interval between each searching (optional)
 * @example waitForElementByClassName('btn', 2000, 100) Search for element which class name is 'btn' at intervals of 100ms, last for 2000ms.
 * @returns {Promise.<Array>}
 */
function waitForElement(using, value, asserter, timeout, interval) {}

/**
 * Search for an element on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} using The locator strategy to use.
 * @param {string} value The search target.
 * @returns {Promise.<Element|null>}
 */
function elementOrNull(using, value) {}

/**
 * Search for an element on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The class name
 * @returns {Promise.<Element|null>}
 */
function elementByClassNameOrNull(value) {}

/**
 * Search for an element on the page, starting from the document root.
 * @summary Support: Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The css selector
 * @returns {Promise.<Element|null>}
 */
function elementByCssOrNull(value) {}

/**
 * Search for an element on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The ID attribute
 * @returns {Promise.<Element|null>}
 */
function elementByIdOrNull(value) {}

/**
 * Search for an element on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The name attribute
 * @returns {Promise.<Element|null>}
 */
function elementByNameOrNull(value) {}

/**
 * Search for an element on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The text
 * @returns {Promise.<Element|null>}
 */
function elementByLinkTextOrNull(value) {}

/**
 * Search for an element on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The partially text
 * @returns {Promise.<Element|null>}
 */
function elementByPartialLinkTextOrNull(value) {}

/**
 * Search for an element on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The tag name
 * @returns {Promise.<Element|null>}
 */
function elementByTagNameOrNull(value) {}

/**
 * Search for an element on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The XPath expression
 * @returns {Promise.<Element|null>}
 */
function elementByXPathOrNull(value) {}

/**
 * Search for an element on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} using The locator strategy to use.
 * @param {string} value The search target.
 * @returns {Promise.<Element|null>}
 */
function elementIfExists(using, value) {}

/**
 * Search for an element on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The class name
 * @returns {Promise.<Element|undefined>}
 */
function elementByClassNameIfExists(value) {}

/**
 * Search for an element on the page, starting from the document root.
 * @summary Support: Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The css selector
 * @returns {Promise.<Element|undefined>}
 */
function elementByCssIfExists(value) {}

/**
 * Search for an element on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The ID attribute
 * @returns {Promise.<Element|undefined>}
 */
function elementByIdIfExists(value) {}

/**
 * Search for an element on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The name attribute
 * @returns {Promise.<Element|undefined>}
 */
function elementByNameIfExists(value) {}

/**
 * Search for an element on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The text
 * @returns {Promise.<Element|undefined>}
 */
function elementByLinkTextIfExists(value) {}

/**
 * Search for an element on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The partially text
 * @returns {Promise.<Element|undefined>}
 */
function elementByPartialLinkTextIfExists(value) {}

/**
 * Search for an element on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The tag name
 * @returns {Promise.<Element|undefined>}
 */
function elementByTagNameIfExists(value) {}

/**
 * Search for an element on the page, starting from the document root.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The XPath expression
 * @returns {Promise.<Element|undefined>}
 */
function elementByXPathIfExists(value) {}

/**
 * Check if element exists.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} using The locator strategy to use.
 * @param {string} value The search target.
 * @type assert
 * @returns {Promise.<boolean>}
 */
function hasElement(using, value) {}

/**
 * Check if element exists.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The class name.
 * @type assert
 * @returns {Promise.<boolean>}
 */
function hasElementByClassName(value) {}

/**
 * Check if element exists.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The ID attribute.
 * @type assert
 * @returns {Promise.<boolean>}
 */
function hasElementById(value) {}

/**
 * Check if element exists.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The name attribute.
 * @type assert
 * @returns {Promise.<boolean>}
 */
function hasElementByName(value) {}

/**
 * Check if element exists.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The text.
 * @type assert
 * @returns {Promise.<boolean>}
 */
function hasElementByLinkText(value) {}

/**
 * Check if element exists.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The partially text.
 * @type assert
 * @returns {Promise.<boolean>}
 */
function hasElementByPartialLinkText(value) {}

/**
 * Check if element exists.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The tag name.
 * @type assert
 * @returns {Promise.<boolean>}
 */
function hasElementByTagName(value) {}

/**
 * Check if element exists.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#elements|POST /session/:sessionId/element}
 * @param {string} value The XPath expression.
 * @type assert
 * @returns {Promise.<boolean>}
 */
function hasElementByXPath(value) {}

/**
 * Click on an element.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#dfn-element-click|POST /session/:sessionId/element/:id/click}
 * @returns {Promise}
 */
function click() {}

/**
 * Send a sequence of key strokes to the active element.
 * @summary Support: Android iOS Web(WebView)
 * @param {string} keys The keys sequence to be sent.
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#dfn-element-send-keys|POST /session/:sessionId/element/:id/sendKeys}
 * @type element
 * @returns {Promise}
 */
function sendKeys(keys) {}

/**
 * Send a sequence of key strokes to the active window.
 * @summary Support: Android Web(WebView) More: https://github.com/alibaba/macaca/issues/487
 * @param {string} keys The keys sequence to be sent.
 * @returns {Promise}
 */
function keys(keys) {}

/**
 * Returns the visible text for the element.
 * @summary Support: Android iOS Web(WebView)
 * @type element
 * @returns {Promise.<string>}
 */
function text() {}

/**
 * Clear a TEXTAREA or text INPUT element's value.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#element-clear|POST /session/:sessionId/element/:id/clear}
 * @type element
 * @returns {Promise.<string>}
 */
function clear() {}

/**
 * Determine if an element is currently displayed.
 * @summary Support: Android Web(WebView)
 * @type element
 * @returns {Promise.<string>}
 */
function isDisplayed() {}

/**
 * Get the result of a property of a element.
 * @summary Support: Android iOS Web(WebView). iOS: 'isVisible', 'isAccessible', 'isEnabled', 'type', 'label', 'name', 'value', Android: 'selected', 'description', 'text'
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#dfn-get-element-property|GET /session/:sessionId/element/:id/property/:name}
 * @param {string} name The property name
 * @type element
 * @returns {Promise.<string>}
 */
function getProperty(name) {}

/**
 * Query the value of an element's computed CSS property.
 * @summary Support: Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#get-element-css-value|GET /session/:sessionId/element/:id/css/:propertyName}
 * @param {string} propertyName The property name
 * @type element
 * @returns {Promise.<string>}
 */
function getComputedCss(propertyName) {}

/**
 * Get the dimensions and coordinates of the given element with a object including x/y/height/width.
 * @summary Support: Android iOS.
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#dfn-get-element-rect|GET /session/:sessionId/element/:id/rect}
 * @type element
 * @returns {Promise.<string>}
 */
function getRect() {}

/**
 * Inject a snippet of JavaScript into the page for execution in the context of the currently selected frame.
 * @summary Support: Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#executing-script|POST /session/:sessionId/execute}
 * @param code script
 * @param [args] script argument array
 * @returns {Promise.<string>}
 */
function execute() {}

/**
 * Get the current page title or focus activity or viewController.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#accept-alert|GET /session/:sessionId/title}
 * @returns {Promise.<string>}
 */
function title() {}

/**
 * Accepts the currently displayed alert dialog.
 * @summary Support: Android iOS
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#accept-alert|POST /session/:sessionId/accept_alert}
 * @returns {Promise.<string>}
 */
function acceptAlert() {}

/**
 * Dismisses the currently displayed alert dialog.
 * @summary Support: Android iOS
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#dismiss-alert|POST /session/:sessionId/dismiss_alert}
 * @returns {Promise.<string>}
 */
function dismissAlert() {}

/**
 * Gets the text of the currently displayed JavaScript alert(), confirm(), or prompt() dialog.
 * @summary Support: iOS
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#send-alert-text|GET /session/:sessionId/alert_text}
 * @returns {Promise.<string>}
 */
function alertText() {}

/**
 * Sends keystrokes to a JavaScript prompt() dialog.
 * @summary Support: iOS
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#send-alert-text|POST /session/:sessionId/alert_text}
 * @param keys
 * @returns {Promise.<string>}
 */
function alertKeys() {}

/**
 * Retrieve the URL of the current page.
 * @summary Support: Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#get-current-url|GET /session/:sessionId/url}
 * @returns {Promise.<string>}
 */
function url() {}

/**
 * Navigate to a new URL.
 * @summary Support: Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#get|POST /session/:sessionId/url}
 * @param url get a new url.
 * @type browser
 * @returns {Promise.<string>}
 */
function get() {}

/**
 * Navigate forwards in the browser history, if possible.
 * @summary Support: Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#back|POST /session/:sessionId/forward}
 * @type browser
 * @returns {Promise.<string>}
 */
function forward() {}

/**
 * Navigate backwards in the browser history, if possible.
 * @summary Support: Android Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#back|POST /session/:sessionId/back}
 * @type browser
 * @returns {Promise.<string>}
 */
function back() {}

/**
 * Refresh the current page.
 * @summary Support: Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#refresh|POST /session/:sessionId/refresh}
 * @type browser
 * @returns {Promise.<string>}
 */
function refresh() {}

/**
 * Change focus to another window.
 * @summary Support: Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#switch-to-window|POST /session/:sessionId/window}
 * @returns {Promise.<string>}
 */
function window() {}

/**
 * Close the current window.
 * @summary Support: Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#close-window|DELETE /session/:sessionId/window}
 * @type window
 * @returns {Promise.<string>}
 */
function close() {}

/**
 * Retrieve the current window handle.
 * @summary Support: Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#get-window-handle|GET /session/:sessionId/window_handle}
 * @returns {Promise.<string>}
 */
function windowHandle() {}

/**
 * Retrieve the list of all window handles available to the session.
 * @summary Support: Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#get-window-handles|GET /session/:sessionId/window_handles}
 * @returns {Promise.<string>}
 */
function windowHandles() {}

/**
 * Get the size of the specified window.
 * @summary Support: Android iOS Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#get-window-size|GET /session/:sessionId/window/size}
 * @param [handle] window handle to set size for (optional, default: 'current')
 * @returns {Promise.<string>}
 */
function getWindowSize() {}

/**
 * Change the size of the specified window.
 * @summary Support: Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#set-window-size|POST /session/:sessionId/window/size}
 * @param width width in pixels to set size to
 * @param height height in pixels to set size to
 * @param [handle] window handle to set size for (optional, default: 'current')
 * @returns {Promise.<string>}
 */
function setWindowSize() {}

/**
 * Maximize the specified window if not already maximized.
 * @summary Support: Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#dfn-maximize-window|POST /session/:sessionId/window/maximize}
 * @param handle window handle
 * @type browser
 * @returns {Promise.<string>}
 */
function maximize() {}

/**
 * Change focus to another frame on the page.
 * @summary Support: Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#switch-to-frame|POST /session/:sessionId/frame}
 * @param {string|number|null} frameRef Identifier(id/name) for the frame to change focus to
 * @returns {Promise.<string>}
 */
function frame(frameRef) {}

/**
 * Apply touch actions on devices.
 * @summary Support: iOS, Android
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#actions|POST /session/:sessionId/actions}
 * @param {string} action Name of the action, tap/doubleTap/press/pinch/rotate/drag.
 * @param [object] args Parameters of the action {@link https://github.com/alibaba/macaca/issues/366 more params}
 * @example driver.touch('doubleTap', {x: 100, y: 100});
 * @returns {Promise.<string>}
 */
function touch(action, args) {}

/**
 * Returns all cookies associated with the address of the current browsing context’s active document.
 * @summary Support: Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#get-all-cookies|GET /session/:sessionId/cookie}
 * @returns {Promise.<string>}
 */
function allCookies() {}

/**
 * Adds a single cookie to the cookie store associated with the active document’s address. {url: 'https://macacajs.github.io', name:'foo', value:'bar'} Optional cookie fields: secure, expiry
 * @summary Support: Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#add-cookie|POST /session/:sessionId/cookie}
 * @returns {Promise.<string>}
 */
function setCookie() {}

/**
 * Delete either a single cookie by parameter name, or all the cookies associated with the active document’s address if name is undefined.
 * @summary Support: Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#delete-cookie|DELETE /session/:sessionId/cookie/:name}
 * @returns {Promise.<string>}
 */
function deleteCookie() {}

/**
 * Allows deletion of all cookies associated with the active document’s address.
 * @summary Support: Web(WebView)
 * @see {@link https://w3c.github.io/webdriver/webdriver-spec.html#delete-all-cookies|DELETE /session/:sessionId/cookie/:name}
 * @returns {Promise.<string>}
 */
function deleteAllCookies() {}

const helper = require('./helper');
const wd = require('../wd/lib/main');

module.exports = wd;
module.exports.helper = helper;
module.exports.webpackHelper = helper(wd);
©著作权归作者所有,转载或内容合作请联系作者
  • 人面猴
    序言：七十年代末，一起剥皮案震惊了整个滨河市，随后出现的几起案子，更是在滨河造成了极大的恐慌，老刑警刘岩，带你破解...
    沈念sama阅读 212,294评论 6赞 493
  • 死咒
    序言：滨河连续发生了三起死亡事件，死亡现场离奇诡异，居然都是意外死亡，警方通过查阅死者的电脑和手机，发现死者居然都...
    沈念sama阅读 90,493评论 3赞 385
  • 救了他两次的神仙让他今天三更去死
    文/潘晓璐 我一进店门，熙熙楼的掌柜王于贵愁眉苦脸地迎上来，“玉大人，你说我怎么就摊上这事。” “怎么了？”我有些...
    开封第一讲书人阅读 157,790评论 0赞 348
  • 道士缉凶录：失踪的卖姜人
    文/不坏的土叔 我叫张陵，是天一观的道长。 经常有香客问我，道长，这世上最难降的妖魔是什么？ 我笑而不...
    开封第一讲书人阅读 56,595评论 1赞 284
  • 港岛之恋（遗憾婚礼）
    正文 为了忘掉前任，我火速办了婚礼，结果婚礼上，老公的妹妹穿的比我还像新娘。我一直安慰自己，他们只是感情好，可当我...
    茶点故事阅读 65,718评论 6赞 386
  • 恶毒庶女顶嫁案：这布局不是一般人想出来的
    文/花漫 我一把揭开白布。 她就那样静静地躺着，像睡着了一般。 火红的嫁衣衬着肌肤如雪。 梳的纹丝不乱的头发上，一...
    开封第一讲书人阅读 49,906评论 1赞 290
  • 城市分裂传说
    那天，我揣着相机与录音，去河边找鬼。 笑死，一个胖子当着我的面吹牛，可吹牛的内容都是我干的。 我是一名探鬼主播，决...
    沈念sama阅读 39,053评论 3赞 410
  • 双鸳鸯连环套：你想象不到人心有多黑
    文/苍兰香墨 我猛地睁开眼，长吁一口气：“原来是场噩梦啊……” “哼！你这毒妇竟也来了？” 一声冷哼从身侧响起，我...
    开封第一讲书人阅读 37,797评论 0赞 268
  • 万荣杀人案实录
    序言：老挝万荣一对情侣失踪，失踪者是张志新（化名）和其女友刘颖，没想到半个月后，有当地人在树林里发现了一具尸体，经...
    沈念sama阅读 44,250评论 1赞 303
  • 护林员之死
    正文 独居荒郊野岭守林人离奇死亡，尸身上长有42处带血的脓包…… 初始之章·张勋 以下内容为张勋视角 年9月15日...
    茶点故事阅读 36,570评论 2赞 327
  • 白月光启示录
    正文 我和宋清朗相恋三年，在试婚纱的时候发现自己被绿了。 大学时的朋友给我发了我未婚夫和他白月光在一起吃饭的照片。...
    茶点故事阅读 38,711评论 1赞 341
  • 活死人
    序言：一个原本活蹦乱跳的男人离奇死亡，死状恐怖，灵堂内的尸体忽然破棺而出，到底是诈尸还是另有隐情，我是刑警宁泽，带...
    沈念sama阅读 34,388评论 4赞 332
  • 日本核电站爆炸内幕
    正文 年R本政府宣布，位于F岛的核电站，受9级特大地震影响，放射性物质发生泄漏。R本人自食恶果不足惜，却给世界环境...
    茶点故事阅读 40,018评论 3赞 316
  • 男人毒药：我在死后第九天来索命
    文/蒙蒙 一、第九天 我趴在偏房一处隐蔽的房顶上张望。 院中可真热闹，春花似锦、人声如沸。这庄子的主人今日做“春日...
    开封第一讲书人阅读 30,796评论 0赞 21
  • 一桩弑父案，背后竟有这般阴谋
    文/苍兰香墨 我抬头看了看天上的太阳。三九已至，却和暖如春，着一层夹袄步出监牢的瞬间，已是汗流浃背。 一阵脚步声响...
    开封第一讲书人阅读 32,023评论 1赞 266
  • 情欲美人皮
    我被黑心中介骗来泰国打工， 没想到刚下飞机就差点儿被人妖公主榨干…… 1. 我叫王不留，地道东北人。 一个月前我还...
    沈念sama阅读 46,461评论 2赞 360
  • 代替公主和亲
    正文 我出身青楼，却偏偏与公主长得像，于是被迫代替她去往敌国和亲。 传闻我的和亲对象是个残疾皇子，可洞房花烛夜当晚...
    茶点故事阅读 43,595评论 2赞 350

推荐阅读更多精彩内容

  • Android - 收藏集
    Android 自定义View的各种姿势1 Activity的显示之ViewRootImpl详解 Activity...
    passiontim阅读 171,830评论 25赞 707
  • Android - 收藏集
    用两张图告诉你，为什么你的 App 会卡顿? - Android - 掘金 Cover 有什么料？ 从这篇文章中你...
    hw1212阅读 12,704评论 2赞 59
  • awesome-android
    afinalAfinal是一个android的ioc，orm框架 https://github.com/yangf...
    wgl0419阅读 6,267评论 1赞 9
  • 【诗】你会突然想念一个人吗
    你会想念一个人吗 就像想念昨天天空飘过的流云 你会爱一个人吗 就像爱亘古不变的山川河流 你突然涌动的思念 在这阴雨...
    宇航员的宇阅读 377评论 1赞 6
  • 珍惜当下
    每个人的爱情观不一样，大多数人一段感情里付出最多的那个人往往最能放开手，攒够了失望就没有理由继续。 ...
    无二之谈阅读 238评论 0赞 0
